How to Block an External Attack with FortiGate and Progress Flowmon ADS

It’s a question we hear often - how do we use the Progress Flowmon solution to block an attack? Flowmon is not an inline appliance that stands in the path of inbound traffic, so we partner with third-party vendors who supply equipment such as firewalls or unified security gateways.

In this post, we’re going to show you how to instruct Fortinet’s firewall FortiGate via Flowmon ADS to block traffic in response to a detected anomaly or attack. This integration is designed to automatically block traffic against the firewall and stop it at the perimeter.

What You’ll Need


The integration scripts are available for download from our GitHub project. You will need a zip file called fgt-mitigation.zip. The full documentation has been published as well.

Currently, the integration only supports IPv4 address ranges, as implementing IPv6 would require an additional API call to create an address object. However, this depends on your network connectivity. If you have only IPv4 available on the WAN interface there is no need for IPv6 blocking.

Background


One way to block attacks against a FortiGate device that has an IPSec VPN service enabled is via configuring a Local-In policy. By default, the Local-In policy allows access to all addresses, but you can create address groups to block specific IPs. One such group can contain up to 600 IPs, although the limit will vary between individual platforms. There is a timer that will remove IPs from the list after a set period to rotate the list and keep it short.

Now, to get Flowmon ADS to provide you with IPs to block, you need visibility into network traffic before it reaches FortiGate.

In other words, you need NetFlow/IPFIX data from a router or a Flowmon Probe placed before the firewall. I do not recommend using FortiGate itself because its flow export does not include TCP flags, which means many detection methods won’t provide reliable results. This was true during our last test of FortiOS 6.4.

Once you have your flow source and your Flowmon ADS is configured to detect anomalies, you can use the custom script package mentioned above. It uses REST API calls to create address objects from Flowmon ADS events in FortiGate and keeps a database of previously blocked IPs for later use.

It’s a Python script which should work on Flowmon 12.

Installation


First, download the package ( fgt-mitigation.zip ) and copy it by your favorite SCP program to the Flowmon appliance. Then you can unzip it in the /home/flowmon folder. It expect the configuration path to be /home/flowmon/fgt-mitigation/etc and logs should be at /home/flowmon/fgt-mitigation/log. Those paths you might change by scripts modification

The package contains a configuration file and two scripts; ag-mitigation.py is responsible for the blocking and will require uploading to Flowmon ADS (see below), and the other, ag-timeout.py , removes blocked addresses using a timeout.

After extraction you might want to configure a cron job to run the ag-timeout.py (en example is provided in README file or integration guideI. It uses an SQLite3 database to keep information about blocked IPs and their time to live in those records. You can configure how long they should stay in place and, by modifying a cron scheduler, how often the script should run.

Next, you need to enable a Local-In policy on your FortiGate with a default action to block any traffic in the Flowmon ADS group running always.

FortiGate console with Local-In policy configured:


At the beginning, this group consists of just one record that basically stands for “no IP address”. This is only because a FortiGate group cannot be empty, and this one record won’t block anything.

Web interface of FortiGate configuration with an address group configured for the script:


Then, set up one monitoring interface of the Flowmon appliance connected to the management switch acting as a WAN port for FortiGate (I’m doing this in my lab in place of a real deployment). This makes it possible to collect all the traffic passing through the observation point and see any attack launched against the FortiGate WAN IP address.

Using Flowmon ADS configuration, upload the script without any parameters and add it as a custom script trigger to run within the Security Issues perspective whenever an event of medium severity or higher is detected.

Flowmon ADS custom script configuration:


Blocking


Before any attack is blocked, you can easily ping the WAN IP address of FortiGate. This indicates a peace scenario - incoming traffic is allowed to pass through.

A successful ping command with the FortiGate IP address:


When the script is triggered, information in FortiGate is updated via REST API including an IP range or subnet definition and inclusion to the Flowmon ADS address group.

IP address added from Flowmon ADS with an event ID:


The event also appears in the Address Group:




Now the list is updated and the machine with the IP address 192.168.47.79 can no longer ping FortiGate or connect to it on any of its ports. That means the firewall is blocking it based on instructions from Flowmon ADS.

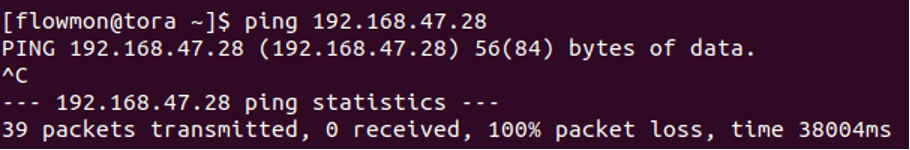

A ping command without a response:


The timeout script is used to clear the list of blocked IPs. After multiple iterations of the timeout script, everything reverts to the original state.

Multiple executions of the timeout script:


The above screen shows that another IP address was added to the group. It will be stored in the database as an integer type for easier manipulation.

Close-Up


This is one way you can use Flowmon combined with a third-party inline device for automatic attack mitigation. Alternatively, you could also use a standard firewall policy where you could use an additional IP address for the loopback interface so that unwanted traffic may be blocked. It’s all about fitting the products to your needs and circumstances.
